Product Overview

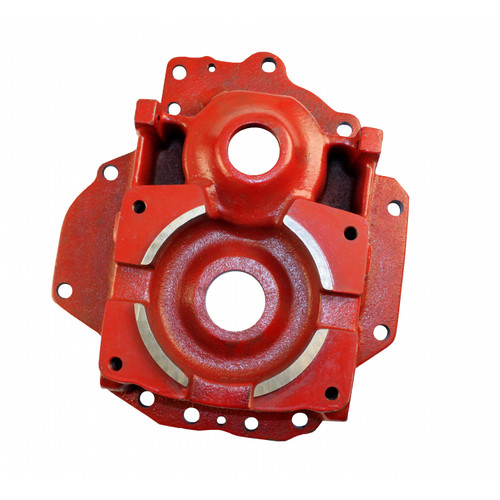

This is a RE-Manufactured PTO Valve housing for units in IH tractors.
Replaces part #: 96065C93
For Models with Hydraulic Activated Anti-Creep Brake Pistons.
The core price is included in the purchase price. The core charge of $50.00 will be refunded to your account when I receive the core.
There is an option at checkout to add some tools you may or may not need:
-
The PTO Test Gauge is used to adjust the PTO pressure.
-
The PTO Clutch Tool is used to compress the big clutch piston return spring and also to compress the brake piston return springs. Without this tool the entire unit needs to be placed in a press twice for disassembly and twice more for assembly. Using this tool you can do all 4 press functions without lifting the unit. Here are the instructions for the process.
Fits IH Tractor models:
786 w/ Hyd brake pistons
886 - AFTER S/N 17000
986 - AFTER S/N 24000
1086 - AFTER S/N 48000
1486 - AFTER S/N 26000
1566
1568
1586
3088
3288
3488
3688
3388 - After S/N 10385 6388
Hydro 186 - AFTER S/N 12000
3588 6388
3788 6788
