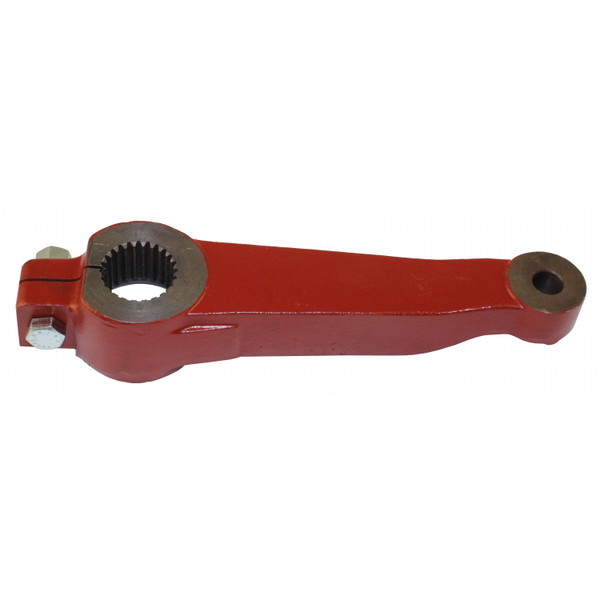

Steering Arm, Split Bolt Design, IH 766 786 886 966 986 1066 1086 1466 1468 1486 1566 1568 1586 3088 3288 3488 3688 5088 5288 5488, Hydro 100, Hydro 186

(No reviews yet) Write a Review
$110.00
SKU:
531248R1 / 531249R1
Weight:
10.00 LBS
Shipping:
$14.00 (Fixed Shipping Cost)

Product Overview

This is a NEW Steering Arm Split bolt design made to replace original style steering arms that have play between the spindle and steering arm.

These will fit most all IH tractors 656 through 5488 with adjustable front ends with spline type spindles.

These also may be used on 826, 1026, and late 56 tractors, but the toe in will need to be adjusted because the splines are not indexed the same as the original IH arms.

I cannot get the arms with the correct spline index for the those tractors, but these arms will work.

This arm is placed on the spindle and the bolt and nut is drawn tight to pinch the arm tight to the spindle therefore removing any play. These will work on new spindles or those that are very worn. These will not work with the taper lock spindles. Call or email if you have any questions: schmittfarmserv@wwt.net

Replaces part #s:

531248R1 531248R2 (LH)

531249R1 531249R2 (RH)

Fits IH Tractor models:

766
786
886
966
986
1066
1086
1466
1468
1486
1566
1568
1586
3088
3288
3488
3688
5088
5288
5488
Hydro 100
Hydro 186
